1. Complete line for powder coating, Tribo. 2. dimensions: 5x16m.
3. power supply 150 KW.
4. Dimensions. max object 400x400x300

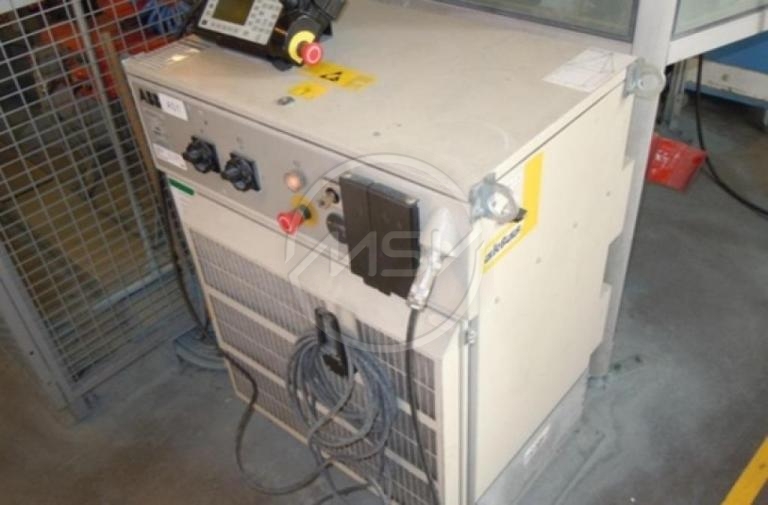

5. Line completely robotic - ABB IRB200 6. Baud rate. administration Rolko-over 0.5m / min
7. Circulation:

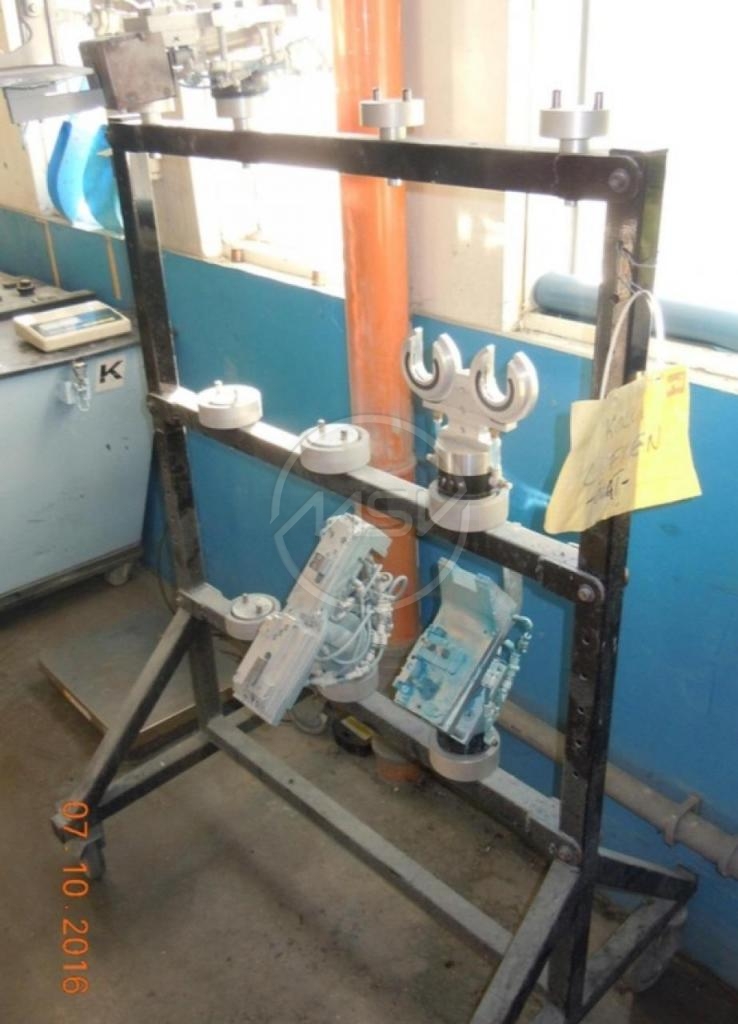

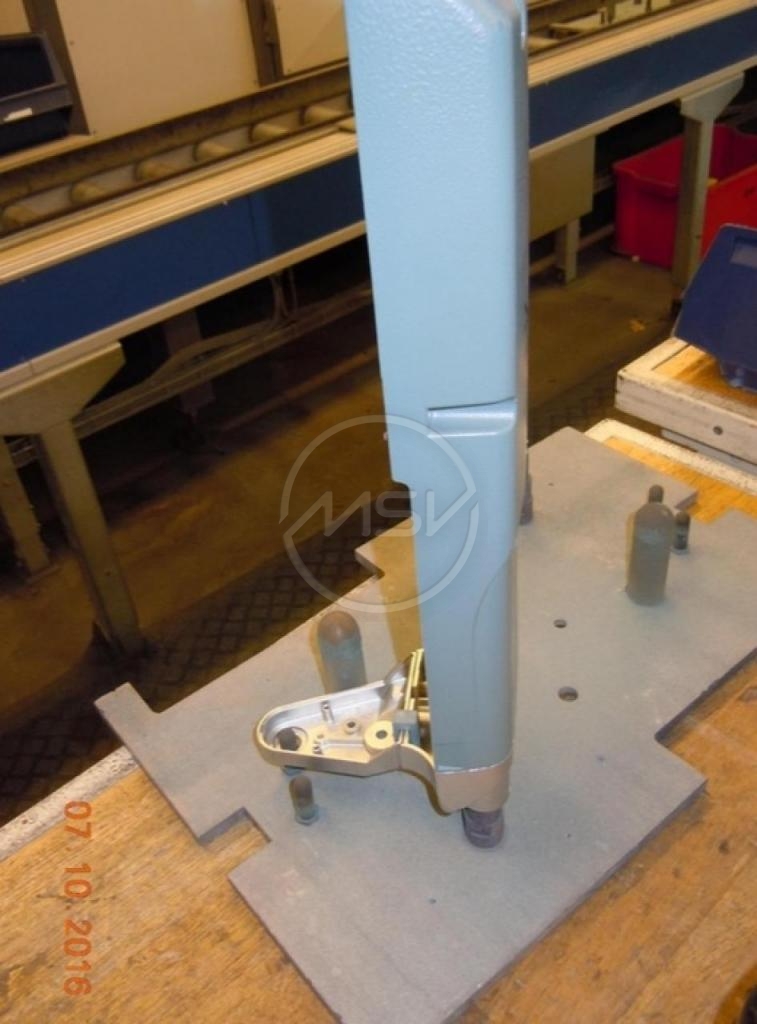

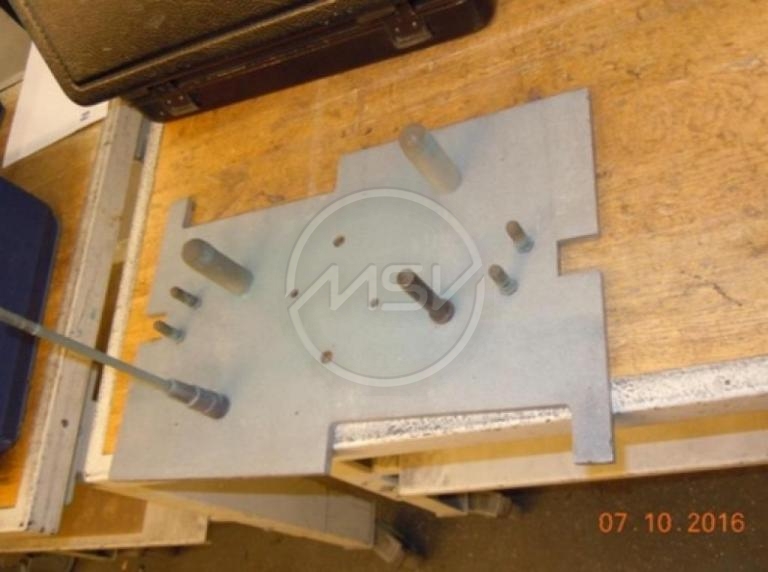

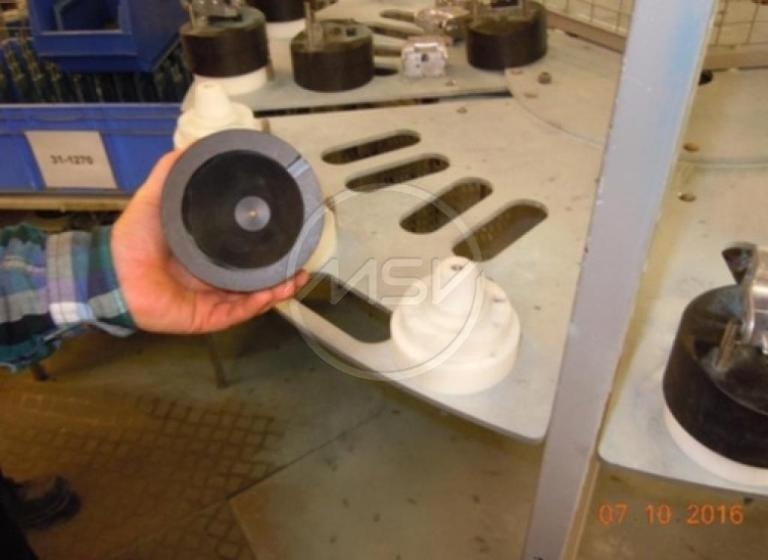

7.10 Loading item on the instrument (manually).

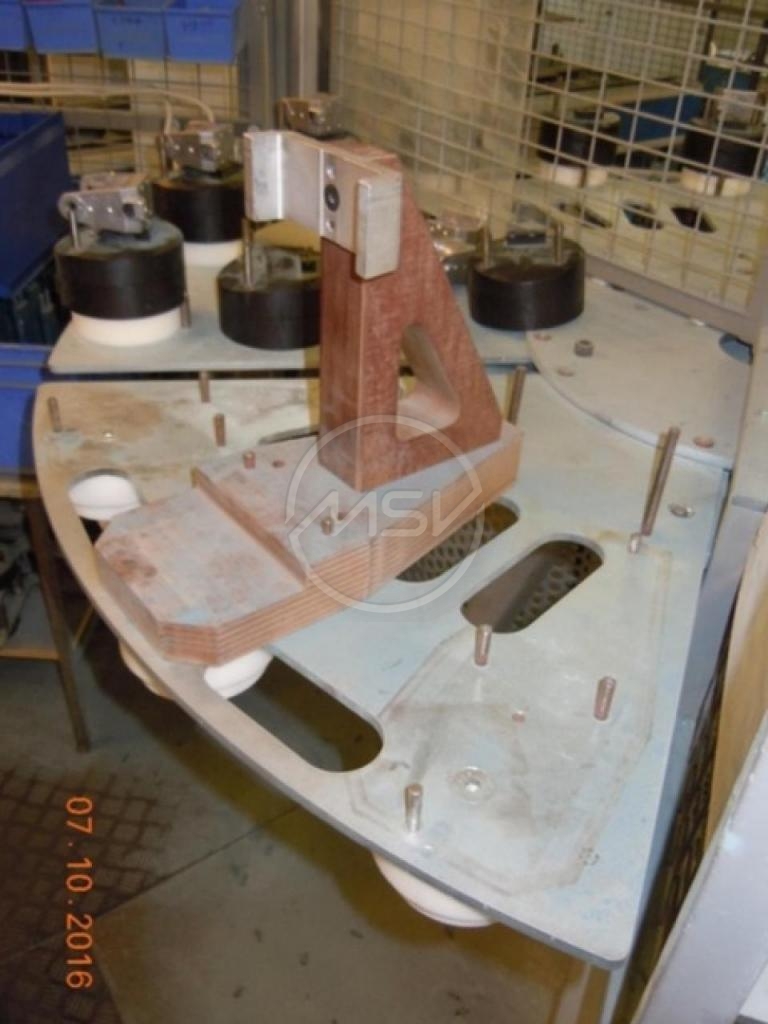

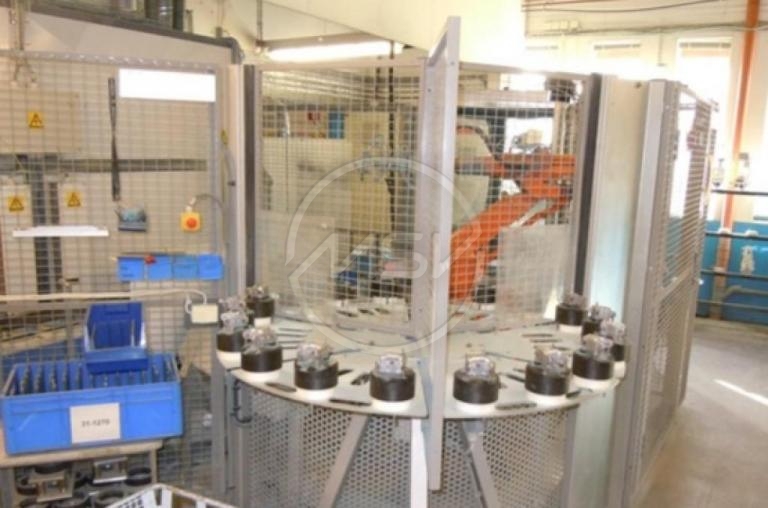

7.20 Turntable gives an object into the slot robot. 7.21 Robot grabs.
7.22 Robot confirmed.
7.23 Robot controls the position of the paint application. 7.24 Robot puts an object on the instrument.
7.25 Robot cleans.

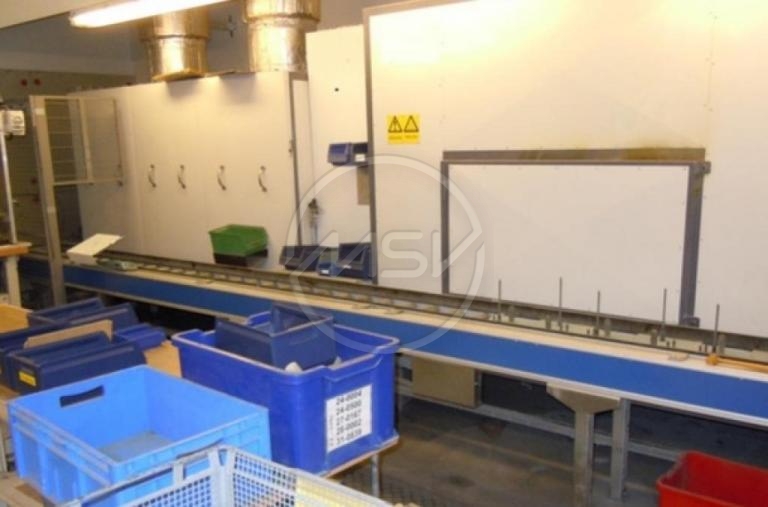

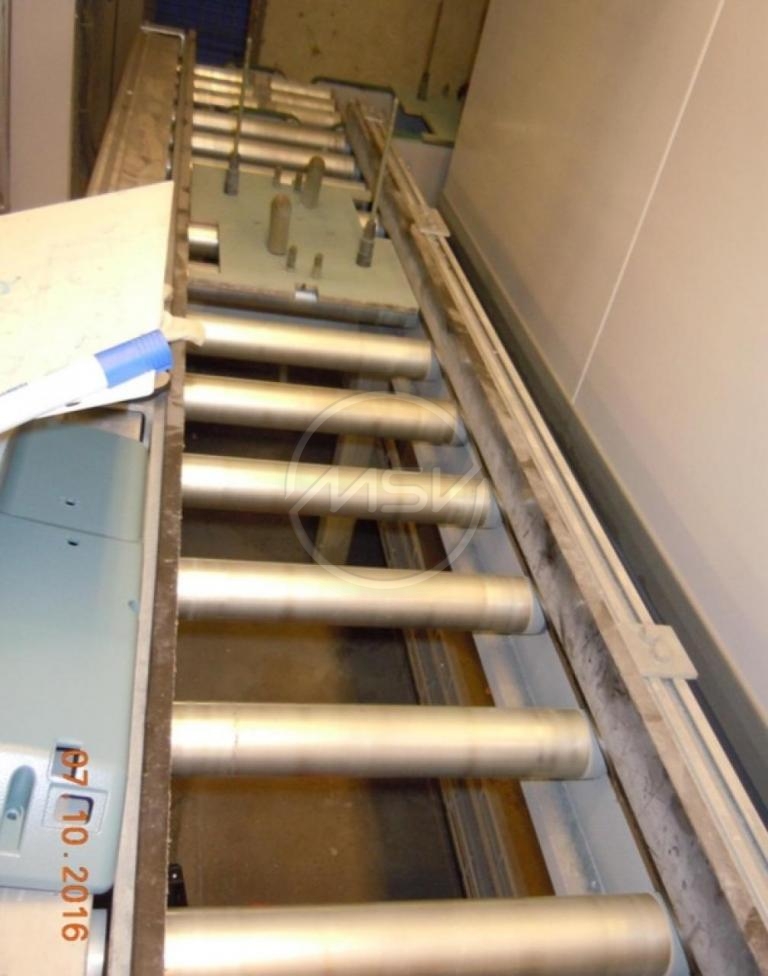

7.30 burning in the oven (L = 5 m) - feeder chain 7.40 Cooling (L = 2.5m)
7.50 Unloading
8. Very good, running condition
9. purpose: metal parts with high complication shape
